Bamboo Crane & Road Mats
Bamboo crane Mats Products
[CM01]

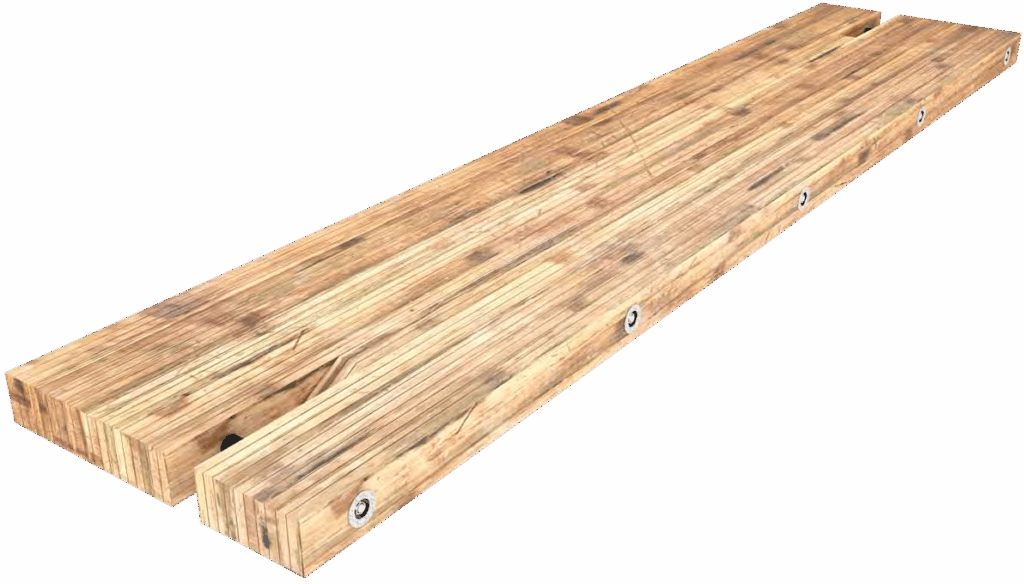

Bamboo Crane Mat T150
Origin : Vietnam
Length (ft / mm) : 5000
Width (ft / mm) : 1000
Thickness (ft / mm) : 150
Weight (kg / U) : 730
Technology : Materials : Bamboo / Structure : Vertical boards
Finish Surface : No sanding, remove sharp edges / No packing
Installation : Provide a stable base when operating large crawler cranes
Density (kg/m³) : 950-1000 kg/m³
Usage Class EN335 : Class 4
[CM02]

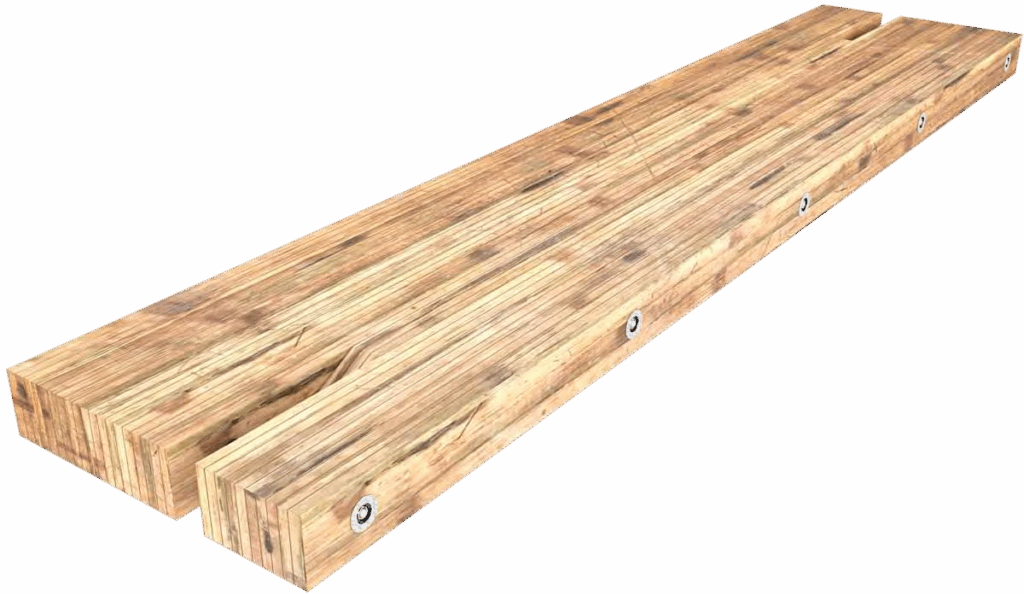

Bamboo Crane Mat T200
Origin : Vietnam
Length (ft / mm) : 5000
Width (ft / mm) : 1000
Thickness (ft / mm) : 200
Weight (kg / U) : 975
Technology : Materials : Bamboo / Structure : Vertical boards
Finish Surface : No sanding, remove sharp edges / No packing
Installation : Provide a stable base when operating large crawler cranes
Density (kg/m³) : 950-1000 kg/m³
Usage Class EN335 : Class 4
[CM03]

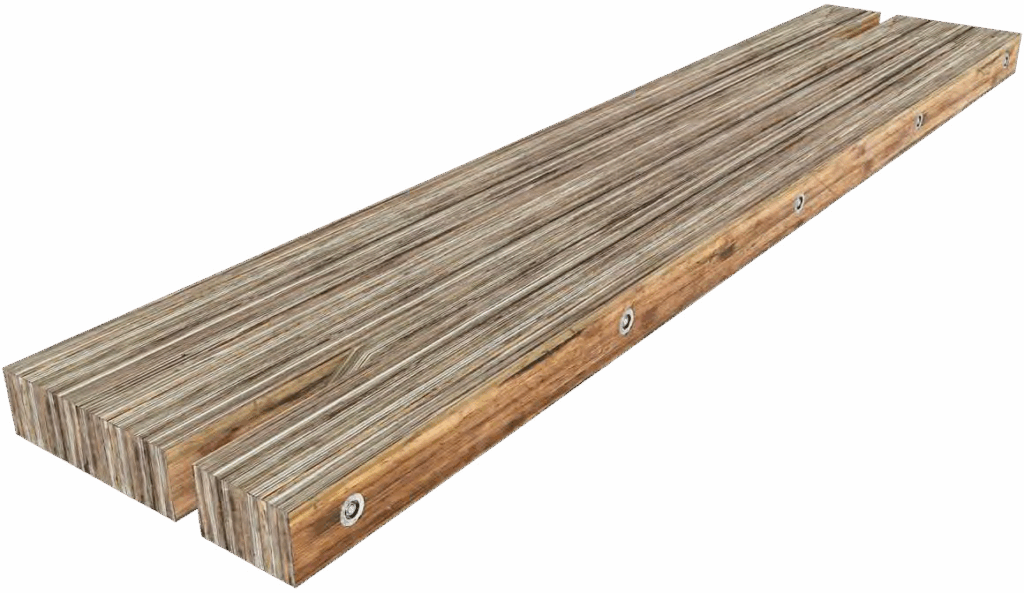

Hybrid Crane Mat
Origin : Vietnam
Length (ft / mm) : 5000
Width (ft / mm) : 1000
Thickness (ft / mm) : 200
Weight (kg / U) : 900
Technology : Materials : LVB (Bamboo + wood) / Structure : Vertical boards
Finish Surface : No sanding, remove sharp edges / No packing
Installation : Provide a stable base when operating large crawler cranes
Density (kg/m³) : 860-920 kg / m³
Usage Class EN335 : Class 4
[CS03]
Pipeline Skid
Origin : Vietnam
Length (ft / mm) : 1200
Width (ft / mm) : 150
Thickness (ft / mm) : 100
Weight (kg / U) : 21
Technology : Materials : Bamboo / Structure : Single layer
Finish Surface : No sanding, remove sharp edges / No packing
Installation : Used in oil fields, highway construction, mining, utilities, large plants, marine exploration, wind farms, and hydro projects.
Density (kg/m³) : 1100-1200 kg / m³
Usage Class EN335 : Class 4
Bamboo Road Mats Products
[RM01]

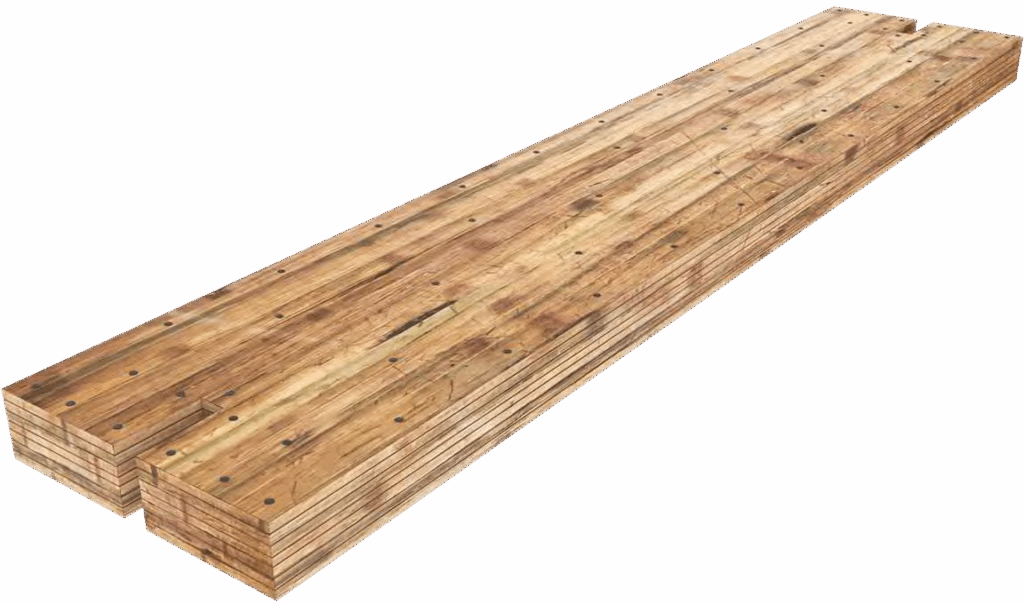

Bamboo Road Mat
Origin : Vietnam
Length (ft / mm) : 5000
Width (ft / mm) : 1000
Thickness (ft / mm) : 200
Weight (kg / U) : 975
Technology : Materials : Bamboo / Structure : horizontal boards
Finish Surface : No sanding, remove sharp edges / No packing
Installation : Bamboo Road Mats to provide a smooth stable surface for platforms, access roads, and bridges. The panels in these mats are orientated horizontally to maximize on the flexibility of bamboo.
Density (kg/m³) : 950-1000 kg / m³
Usage Class EN335 : Class 4
[RM02]

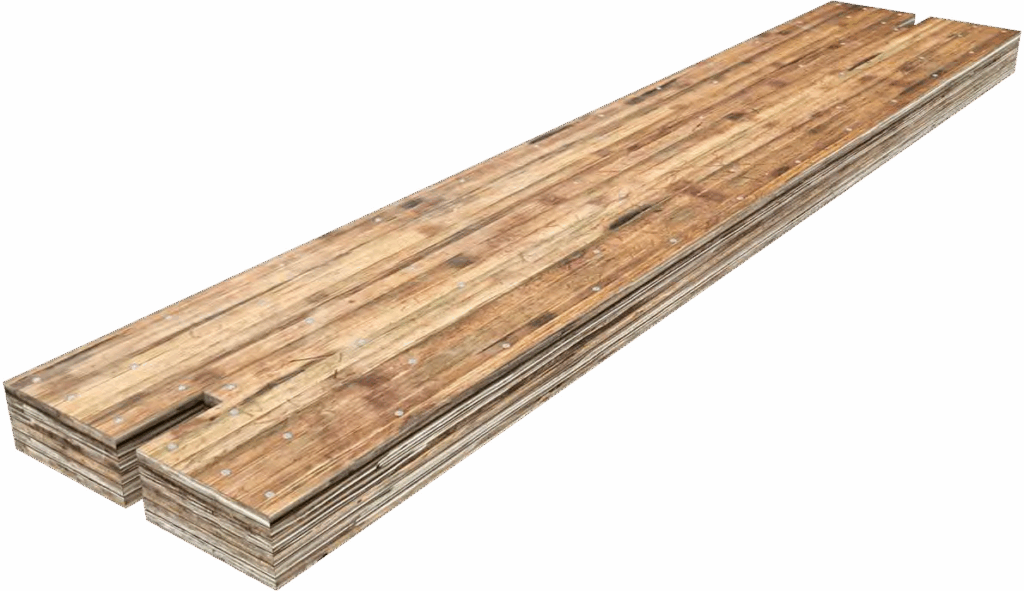

Hybrid Road Mat
Origin : Vietnam
Length (ft / mm) : 5000
Width (ft / mm) : 1000
Thickness (ft / mm) : 200
Weight (kg / U) : 900
Technology : Materials : LVB (Bamboo + wood) / Structure : horizontal boards
Finish Surface : No sanding, remove sharp edges / No packing
Installation : Bamboo Road Mats to provide a smooth stable surface for platforms, access roads, and bridges. The panels in these mats are orientated horizontally to maximize on the flexibility of bamboo.
Density (kg/m³) : 860-920 kg / m³
Usage Class EN335 : Class 4
Technical & Cost Material Comparison
Material | Thickness (mm) | Bending Strength (MPa) | Elastic Modulus (GPa) | Weight (kg/m²) | Price (USD/m²) | Moisture Resistance | Typical Lifespan (years) |
|---|---|---|---|---|---|---|---|
Bamboo (150 mm) | 150 | 183 | 18 | 150–160 | $160–180 | High | 2–5 |
Bamboo (200 mm) | 200 | 193 | 18 | 190–200 | $190–210 | High | 3–6 |
Hardwood (150–305 mm) | 150–305 | ~50–70 | 10–13 | 250–330 | $100–120 | Low | 1–3 |
Composite (HDPE/Fiberglass) | 108–127 | ~20–30 | 9–10 | 45–60 | $350–400 | Excellent | 10–15 |
Disclaimer: All performance data and cost estimates are based on publicly available sources, supplier data, industry benchmarks, and internal assessments. Actual product specifications and performance may vary based on application, climate, and usage. This table is provided for informational purposes only and does not constitute a guarantee or warranty.
